Clearmount Miter Saw Scale - Center Cut - Length 88"

This product requires a 3-5 day lead time.

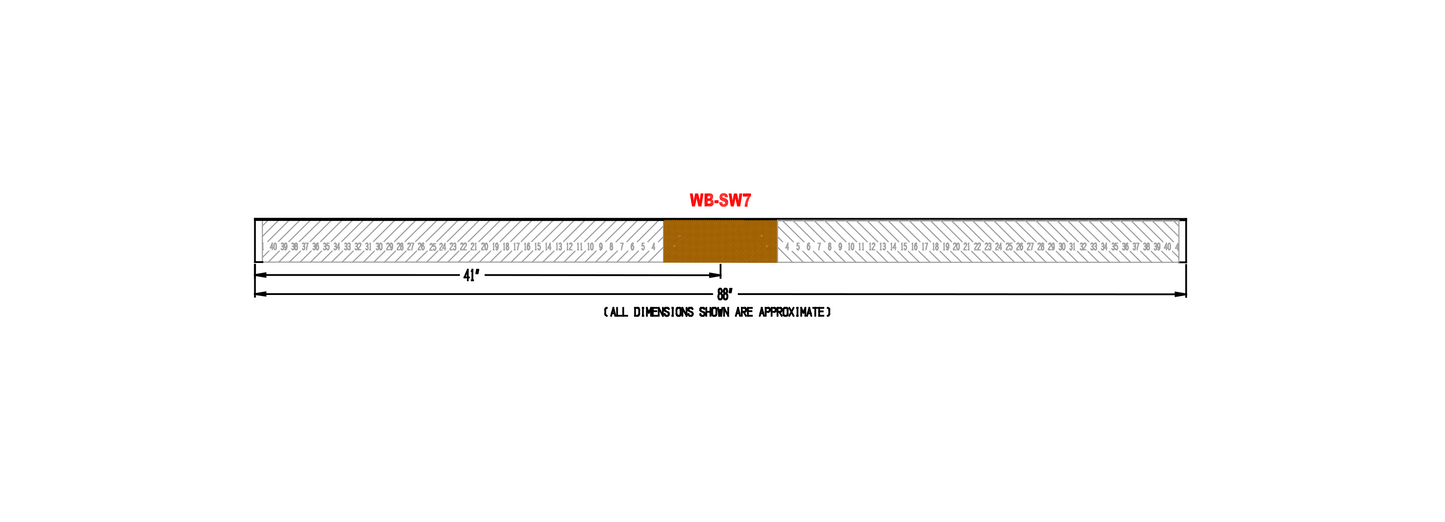

Overall length is 88"- scale allows you to measure up to 41" on each side.

Compatible with 10" and 12" Miter Saws – including compound and sliding compound saws.

The markings on the scale are in 1/8” increments – are silk screened and guaranteed not to wear off. – No need to replace labels.

The design of our system - using a one piece, heavy gauge aluminum extrusion, that mounts to the top of the saw table guarantees you a level bed and has solved the problem inherent in other systems where the scales are extension arms that need to be attached with brackets to the sides of the saw

Units are shipped preassembled - mounting to the saw is easy and fast - simply use pilot holes in the base to drill into the table of your saw and insert one bolt on each side. You are making no modifications to the original saw.

Depending on the blade you are using, you can cut wood, metal or plastic.

Our design essentially eliminates chipout on the back of your moulding as our fence gives full support on the back of the moulding as you cut. This allows you to cut with the rabbet facing you.

 Calibration of the scale is done when the scale is mounted to the saw - it is easy to do and unless the scale is removed from the saw, only needs to be done once.

Depending on the saw and the profile of your moulding, you can cut moulding that is up to 4" wide or up to  3.25" high

2 adjustable (vertically & horizontally) clamps run along a channel in the front part of the scale - These clamps hold the moulding by pushing it back against the fence

Quick release production stop slides along the fence

The custom extruded heavy gauge aluminum base assures you of true and accurate miters

Wood block is included. Replacement wood blocks can be purchased here

Clearmount Mitre Scale Initial Setup Video

https://www.youtube.com/watch?v=EzZX0jqYfQo

Scale Extension Video

https://www.youtube.com/watch?v=UupBBdzdXL4
