BackMate

BackMate

SKU:Backmate 6234

Regular price $185.00 USD
Regular price Sale price $185.00 USD
Sale Contact Sales To Inquire
Title
Optional Accessories:

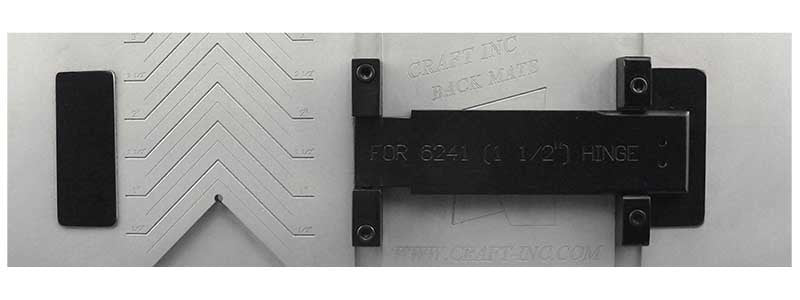

The Back Mate was developed for our entry level customers who are not looking to make a million backs but occasionally need to make their own.

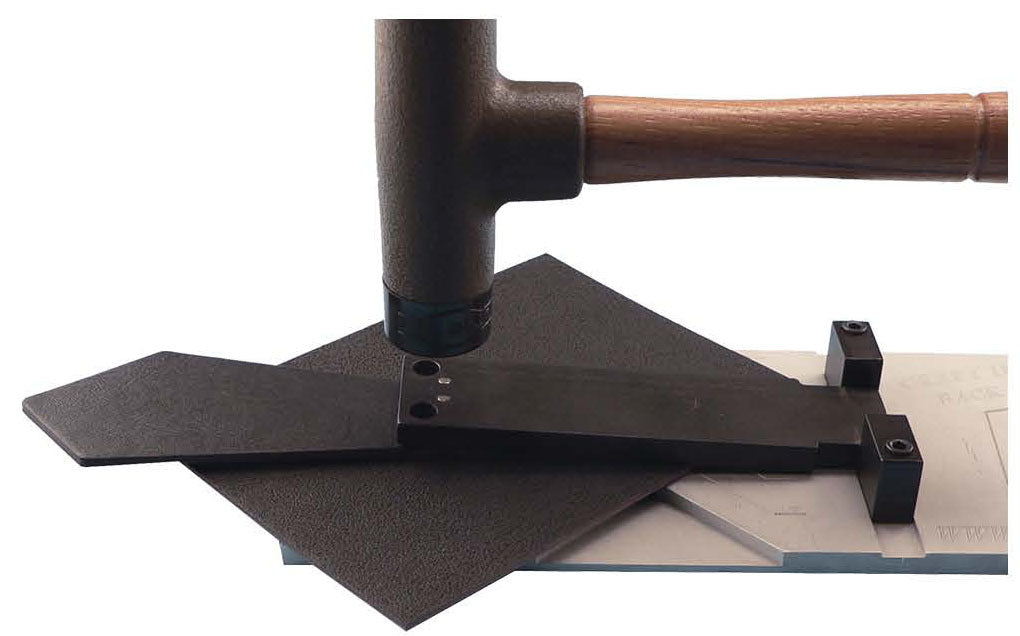

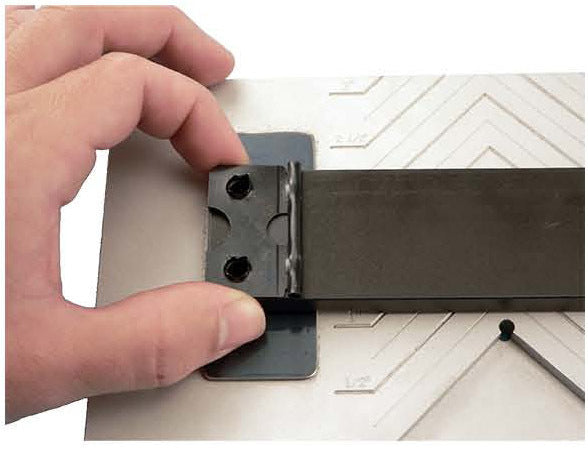

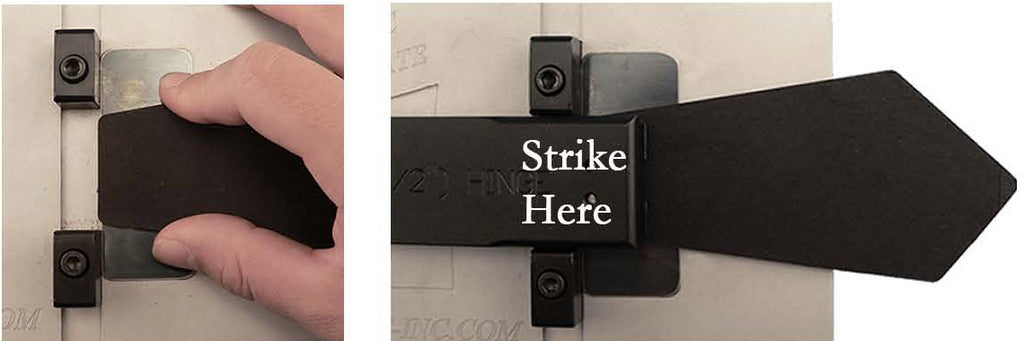

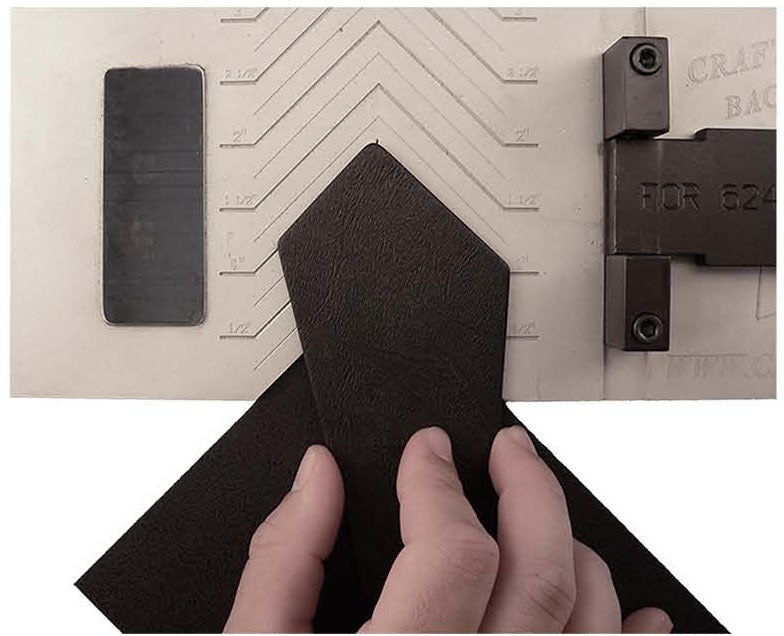

The Back Mate allows you to make your own easel backs in 4 easy steps. Insert the hinge into the applicator bar. Line the back of the strut up with the guide. Flip hinge applicator bar and strike with hammer to apply hinge.The built in scale allows for flush or up to a 2 drop. Place the back in the notch and align the strut on the desired setting. Holding the back and the strut together position over the striking area for final assembly. Flip hinge applicator bar and strike with hammer to apply.



Why would I need another applicator bar?
The BackMate comes with the applicator bar to apply the 6234 easel hinge. This hinge will work for frames up to 8 x 10.
For larger and heavier frames we suggest using the 6239 easel hinge. Each bar has a unique set of holes and magnets to hold the hinge/hanger in place. For example to apply the 1401 hanger you need the 1401 bar.

Detailed Specifications:

3” x 5” up to 11” x 14” backs
Struts up to a 2 1/2” drop depending on back size.
Package Contents: Back Mate with 6234 hinge applicator bar, 15 pcs. of easel hinges.

Optional Accessories:

6239 hinge applicator bar
1401 hanger applicator bar
1408 hanger applicator bar
1428 hanger applicator bar
Black Rubber Hammer with Handle. 1 5/8" face diameter. 5/8" overall width, 12 1/2” overall length.

BackMate Applicator Bars Click Here

Back Mate PDF

For Video “Click Here”



Proudly Made In The USA
